ULTRASONIC MEASUREMENT

ULTRASONIC MEASUREMENT

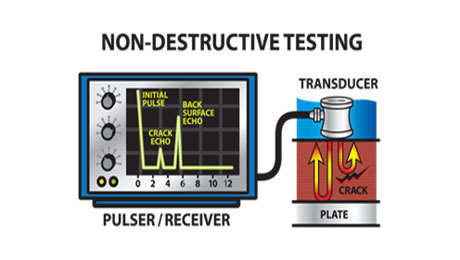

High-speed Ultrasonic (UT) Systems enable a full volumetric examination of materials and are designed to detect surface, subsurface, internal and dimensional flaws., such as cracks, seams, and internal flaws such as voids or inclusions of foreign material. It’s also used to measure wall thickness in tubes and diameters of bars. It has been established that ultrasound monitoring provides early warning of bearing failure. Various stages of bearing failure have been established. An 8 dB gain over baseline indicates pre-failure or lack of lubrication. A 12 dB increase establishes the very beginning of the failure mode. A 16 dB gain indicates advanced failure condition while a 35-50 dB gain warns of catastrophic failure.



Ultrasonic is used in variety of applications.

1. Leak detection.
2. Lubrication defects

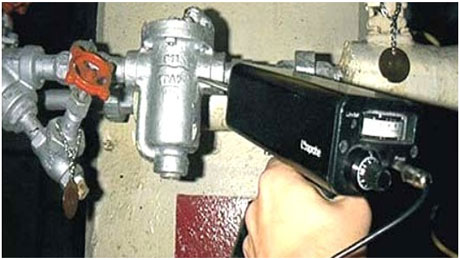

3. Steam trap

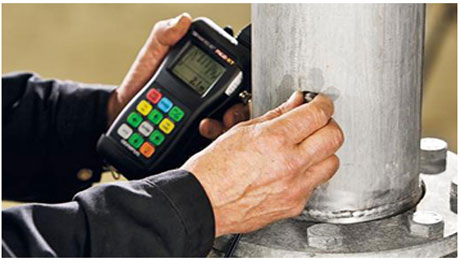

4. Thickness measurement.
